Summary
The Blue Loop transforms the Roosevelt Island Ferry Landing into a sustainably powered hub for autonomous pods that loop around the island. The project addresses the last-mile mobility problem created by the island’s long, narrow geography and the concentration of major transit access near the center. Residents at the north and south ends often have to make long trips to reach the tram or subway, and the island’s large elderly population needs more reliable mobility options to traverse the island easily.
The proposal introduces a fleet of ten disabled- and elderly-first accessible, Level 4 autonomous electric pods operating on a continuous Main Street loop. The pods connect the Ferry Landing, subway and tram plaza, Cornell Tech, Southtown, Coler Hospital, Northtown, and the Octagon. At the Ferry Landing, a flexible curb with wireless induction charging allows the fleet to recharge outside ferry peak periods. The energy idea is framed as an extension of Roosevelt Island’s existing tidal-energy precedent, the Verdant Power Roosevelt Island Tidal Energy project.
Automated driving technology is used as an accessibility tool: the Blue Loop operates like a travelator or moving walkway for seniors, wheelchair users, late-shift workers, students, and ferry commuters who need frequent, predictable movement along the island.
AV Use Case
What AVs are involved?
The Blue Loop pod is a Level 4 autonomous electric shuttle designed for a geofenced Roosevelt Island operating domain. Each vehicle is bidirectional, carries up to six passengers, and uses an ultra-low-floor interior so wheelchair users, people with walkers, strollers, and passengers with limited balance can board without a ramp. The cabin prioritizes unobstructed mobility over seat count: wide doors, fold-up seats, grab rails, audio announcements, tactile buttons, high-contrast visual displays, and voice-activated stop requests are part of the baseline design.
The proposed fleet includes ten pods. Eight operate in regular circulation during peak periods, one remains staged near the Ferry Landing for ferry surges, and one is held as a maintenance or emergency spare. Remote teleoperation support is available for blocked lanes, emergency vehicle conflicts, and unusual passenger assistance needs, but ordinary service is driverless.
What are they doing?
The pods run a continuous north-south Main Street loop connecting the Ferry Landing, Cornell Tech and Southtown, the subway and tram plaza, Main Street retail, Coler Hospital, Northtown, and the Octagon. The service is designed as a short-hop circulator rather than a conventional bus route. Riders can board at raised, level stops and exit at major activity nodes without navigating steps, curb cuts, or long walks between transit modes.
The target operating speed is 10 mph, with 5 mph operation through raised pedestrian-priority areas. Based on a roughly 1.5-mile loop and ten vehicles, the service target is a sub-3-minute average wait during peak periods. The Blue Loop is meant to feel frequent enough that riders do not need to plan around a schedule.
Service operates on a staggered 24/7 cycle to balance service availability with energy requirements. During peak hours, from 7:00 AM to 10:00 PM, the full 10-pod fleet maintains short headways that synchronize with ferry and subway pulses. Overnight, the fleet tapers to three active units while the remaining seven units undergo high-capacity inductive charging at the Ferry Landing.
Why here?
The Ferry Landing is the right anchor primarily because of its energy potential. A smart city future should be sustainable, and hydropower helps support that goal. The landing sits near the East Channel, where Roosevelt Island already has a documented tidal-energy precedent through the Verdant Power Roosevelt Island Tidal Energy project. The hub uses that precedent as a design logic: ferry passengers arrive by water, then transfer to small autonomous vehicles supported by a local renewable-energy system.
To bridge the gap between the river and the road, the proposal extends the RITE precedent into the Ferry Landing itself. Underwater tidal turbines would generate power from East River currents and transmit it through sub-aqueous cables to a shoreline battery energy storage system integrated near the landing. That storage system would buffer the irregular timing of tidal generation and supply a stable DC bus to power electronics connected to induction coils beneath the permeable-paver boarding area, allowing the pods to recharge without visible plug-in equipment.
Main Street is the right operating corridor because Roosevelt Island’s geography naturally concentrates local travel onto a narrow north-south spine. This creates a manageable geofence for automation and allows the design to focus on fewer conflict points, clearer pedestrian crossings, and repeatable docking behavior. The corridor also serves a population with high accessibility needs, including seniors, who make up about 20% of Roosevelt Island’s population.
Stakeholders
Roosevelt Island Operating Corporation (RIOC) is the primary public operator and local steward. Since RIOC already operates the Red Bus circulator, the Blue Loop is framed as an upgrade to local circulation rather than a separate private shuttle. RIOC’s main concerns would be reliability, operating cost, safety, public acceptance, and long-term maintenance. The design response is to keep the route geofenced, use remote operations support, preserve accessible physical controls inside the pods, and phase the service in alongside the existing bus before any larger replacement.
NYC Ferry and NYC DOT are the key intermodal and right-of-way partners. NYC Ferry needs the landing area to handle arriving passengers without creating a bottleneck, while NYC DOT needs Main Street to remain clear for pedestrians, cyclists, emergency vehicles, and any remaining manual traffic. The design response is a flexible curb at the Ferry Landing, timed pod staging before ferry arrivals, raised pedestrian-priority intersections, clear pavement markings, and curb management that prevents pod idling.
Residents of Northtown, the Octagon, Southtown, and Coler Hospital are the core users. The system responds to people for whom a half-mile walk, a missing curb ramp, or an unpredictable wait can determine whether a trip is possible. The main equity concern is that a technology-forward system could exclude the very riders it is meant to serve. The design response is deliberately low-tech at the point of use: no smartphone is required, stops use tactile and audio cues, pods arrive frequently enough that riders do not need live tracking, vehicles include physical buttons, and priority boarding is based on mobility needs.
Because the Blue Loop would function as public transportation, the project would also require coordination with security and maintenance stakeholders such as NYC DOT, MTA, NYPD, or RIOC to prevent vandalism, monitor pod conditions, and keep the vehicles safe and reliable.
Local businesses and institutions benefit from more predictable short trips along Main Street, while retail gains foot traffic because riders can hop on and off without treating each stop as a major transit transfer. Cornell Tech can also participate as a living-lab research partner, helping RIOC evaluate fleet performance, curb behavior, microclimate effects, and pedestrian safety. Any data collection should be aggregated, anonymized, and governed by clear retention rules.
Technology providers supply the autonomous driving stack, charging systems, fleet management software, and maintenance support. Useful comparisons include May Mobility, which develops autonomous transit services for real-world public and shared-mobility settings, and Beep, which operates autonomous shuttle services and has moved from pilots into larger public-transit deployments. For a provider like this, the Blue Loop offers visibility, controlled real-world testing, regulatory learning, and a potential path to expansion in other dense urban districts. Their role is not just to demonstrate novelty, but to deliver public-service reliability: wheelchair access, weather resilience, transparent incident reporting, vandalism-resistant design, and a human support channel.
Relevant Blueprints for Autonomous Urbanism
The following urban design strategies are drawn from the NACTO Blueprint for Autonomous Urbanism, 2nd Edition.
Curbside Management / Flexible Curb: The Induction Strip
The first intervention applies the NACTO Blueprint’s curbside management logic by converting a 200-foot stretch of the Ferry Landing access road into a flexible curb. Today, ferry access roads and curb space can easily become static holding areas for idling, parking, loading, or ad hoc passenger pickup. The hub reallocates that curb space to support pod boarding during ferry arrivals and pod charging outside ferry peak periods.
Physically, the asphalt parking edge is replaced with a level permeable-paver surface. This allows flush boarding while also helping manage stormwater drainage. Wireless induction charging coils are embedded below the pod docking positions, while the surface remains visually clean and fully walkable so the pier does not become cluttered with exposed equipment.
During ferry arrivals, the curb is reserved for Blue Loop boarding. Pods are staged shortly before the ferry docks and dispatched in small groups so the landing clears quickly. During off-peak periods, the same curb could support micro-freight delivery windows for Main Street businesses. The curb therefore becomes more than an AV stop: it becomes a flexible piece of public infrastructure that supports mobility, charging, and limited delivery activity at different times of day.
Safe Frequent Crossings: The Tabletop Interface
The second intervention applies NACTO’s safe, frequent crossing logic to the places where a low-speed autonomous loop meets heavy pedestrian movement. Three priority areas are raised to sidewalk height: the Ferry Landing, the subway and tram plaza, and the Octagon entrance. Each becomes a tabletop intersection, using darker contrasting paving, tactile warning edges, accessible drainage, and low-profile lighting to signal a pedestrian-first area.
This design slows any remaining manual vehicles through street geometry rather than signage alone. The Blue Loop pods also treat each raised zone as a high-caution operating area, automatically reducing speed to 5 mph and yielding whenever sensors detect a person crossing or waiting to cross.
This design matters most for people with walkers, wheelchairs, strollers, low vision, or balance issues. Instead of requiring a rider to find a curb cut, line up with a ramp, or cross a sloped gutter, the sidewalk, crossing, and pod floor become one continuous level plane. The autonomous system is therefore supported by physical street design: the vehicle is not expected to solve accessibility by itself.
Visual Storytelling and Media
The featured image shows the Ferry Landing Hydro-Hub from an elevated oblique angle. It reveals the pier, the East Channel edge, the flexible curb, Blue Loop pods docking, step-free boarding, and the induction strip integrated into the paving.

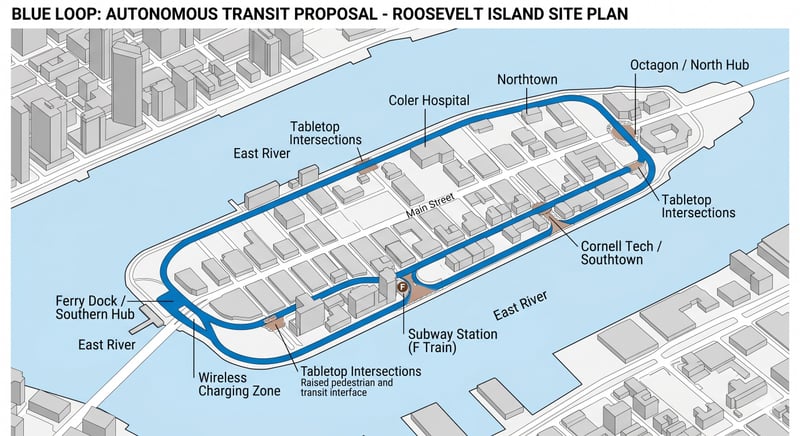

The second image is a site plan showing the Main Street loop, key stops, ferry connection, subway connection, Cornell Tech/Southtown, Coler Hospital, Northtown, and the Octagon. The plan also labels tabletop intersections and the ferry landing wireless charging zone.
The video adds an operations sequence: ferry passengers arrive, pods stage at the Hydro-Hub, riders board at the waterfront, and the autonomous fleet begins circulation from the dock area.

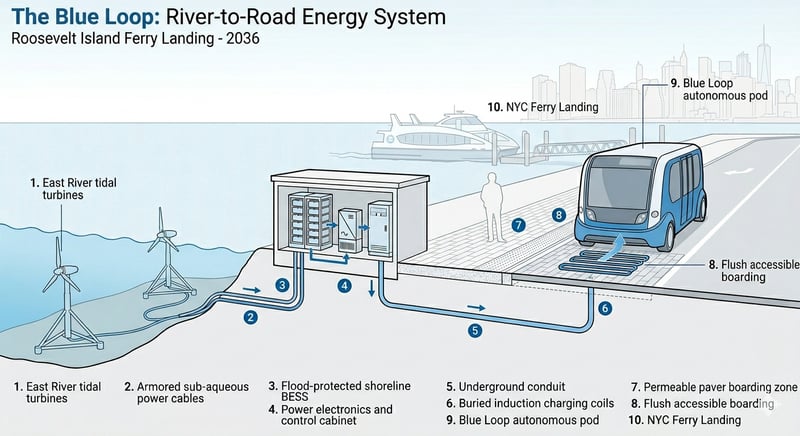

The fourth media item is an energy-system diagram. It explains how tidal turbines, sub-aqueous cables, shoreline battery storage, power electronics, and buried induction coils connect the East River energy concept to the Blue Loop charging curb.
Methods
Prompt Development
- Tool: Gemini
- Transformation: I gave Gemini the project concept, the Roosevelt Island site, the required media deliverables, and the key design details: autonomous pods, ferry transfer, elderly-first accessibility, induction charging, tabletop intersections, and the Blue Loop route. Gemini was then used to turn that planning context into specific visual-generation prompts for the featured rendering, site plan, and animation.
- Result: This step produced clearer prompts that described the location, vehicle, users, street design, camera angle, and visual style before any media was generated.
Example prompt used for the featured image:
A high-end architectural concept rendering of the Roosevelt Island Ferry dock area in the year 2036. In the foreground, a sleek, minimalist autonomous “Blue Loop” pod is docked. The pod has large glass windows and wide sliding doors that are perfectly flush with the sidewalk. An elderly resident with a walker and a person with a dog are boarding smoothly. On the ground, the pavement features a distinct hexagonal “induction strip” with a subtle, soft blue glowing pulse. In the background, the NYC Ferry is docked at the pier, and the Manhattan skyline is visible across the East River. Photorealistic, soft morning light, 8k resolution, cinematic urban design style.
Featured Image Generation
- Tool: Gemini image generation
- Transformation: The featured image was generated from the architectural rendering prompt and then iterated to make the pod, boarding condition, induction paving, ferry dock, and Manhattan skyline visible in one scene. The goal was to make the image communicate the proposal without requiring a long caption.
- Result: The final rendering shows the Blue Loop as an accessible waterfront transit system, with an elderly rider boarding at a flush curb and the ferry connection visible in the background.
Site Plan Generation
- Tool: Gemini image generation
- Transformation: A separate prompt was used to generate an isometric site plan of Roosevelt Island. The prompt specified the Blue Loop route, the Ferry Dock southern hub, the subway station, Cornell Tech/Southtown, Coler Hospital, Northtown, the Octagon north hub, tabletop intersections, and the wireless charging zone.
- Result: The final site plan locates the project geographically and shows how the loop connects the island’s north and south ends to central transit access.
Animation Generation
- Tool: Gemini video generation
- Transformation: A short cinematic animation was generated to show the Blue Loop as an operating system rather than a static object. The animation focused on the autonomous pod environment at the waterfront and the movement logic of the proposal.
- Result: The final video adds a time-based layer to the case study, showing the project as a transit service that stages, boards, moves, and supports ferry-linked circulation.
Energy Diagram Generation
- Tool: Gemini image generation
- Transformation: A final technical diagram was generated to explain the “river-to-road” energy chain: tidal turbines in the East Channel, sub-aqueous power cables, shoreline battery storage, power electronics, and induction coils beneath the boarding surface.
- Result: The diagram makes the Hydro-Hub concept easier to evaluate by showing how the renewable-energy system would connect physically to the pod charging area.
